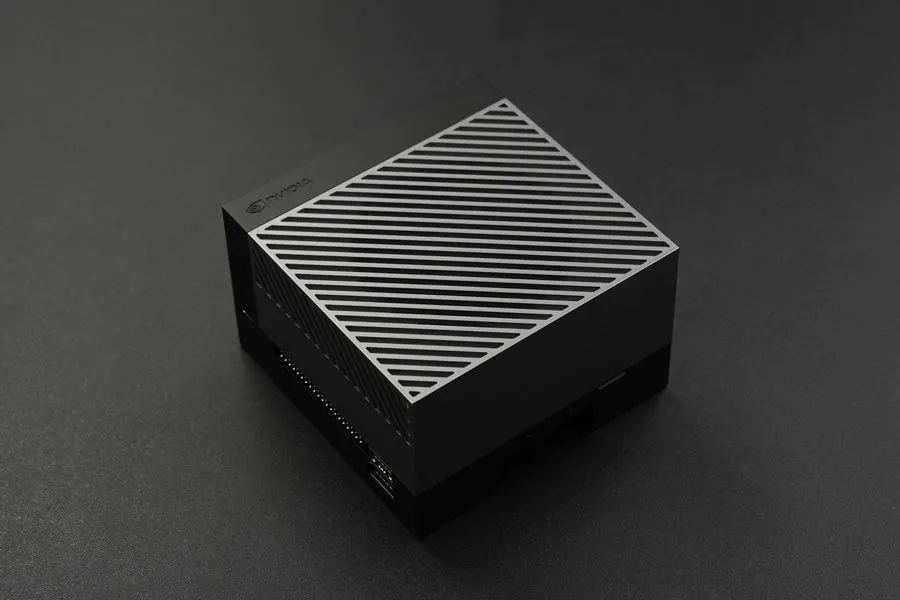

The NVIDIA Jetson AGX Orin 64GB Developer Kit is the ideal platform to initiate development on the Jetson Orin. Its small form factor, comprehensive connectivity, and a maximum 275 TOPS performance makes it suitable for crafting autonomous robots and other AI-enabled machines with intricate detail.
The NVIDIA Jetson AGX Orin 64GB Developer Kit provides comprehensive emulation of Jetson Orin modules, equipped with Ampere GPU architecture, deep learning accelerators, high-speed IO, and rapid memory bandwidth, enabling developers to construct AI applications with larger models to tackle difficult tasks such as natural language understanding, 3D perception, and multi-sensor fusion.
NVIDIA Jetson AGX Orin 64GB Developer Kit is equipped with the full Jetson software stack, plus frameworks for robotics (Isaac), vision A (DeepStream) and conversational Al (Riva). Save time with NVIDIA Omniverse Replicator for synthetic data generation (SDG) and NVIDIA TAO toolkit for fine-tuning pre-trained AI models from the NGC catalog.
Partners of Jetson bring a range of AI, system software, development tools, and custom software to meet your product needs, including cameras, sensors, and carrier boards, as well as design services.
Get the computing capability of more than eight Jetson AGX Xavier systems in a developer kit that integrates the latest NVIDIA GPU technology with the world's most advanced deep learning software stack. Now, you'll have the flexibility to create the next generation of Al solutions.
Figure: NVIDIA Jetson AGX Orin Developer Kit Overview
JetPack SDK
The JetPack SDK is compatible with all Jetson modules and developer kits. It is a comprehensive solution for building AI applications and provides a robust software foundation for Jetson AGX Orin. It includes the latest Linux driver package (L4T) for the Linux operating system, as well as the CUDA-X acceleration libraries and APIs for deep learning, computer vision, accelerated computing, and multimedia.
DeepStream SDK
Building and deploying AI-based intelligent video analytics applications and services using DeepStream, which provides a multi-platform scalable framework with TLS security. It can be deployed at the edge and connected to any cloud.
Figure: DeepStream SDK
Simplifying workflow with the NGC Catalog
The GPU-optimized software hub for deep learning, machine learning, and high-performance computing accelerates deployment within development workflows.
Figure: Simplifying workflow with the NGC Catalog
NVIDIA Transfer Learning Toolkit
Accelerate AI training speed by over 10x and enable development like a zero-code professional.
Figure: NVIDIA Transfer Learning Toolkit
Embarking on the creation of an AI/ML system from scratch requires substantial investments of both time and resources, whereas transfer learning can efficiently extract learned features from an existing neural network model and apply them to a new model. The NVIDIA Transfer Learning Toolkit (TLT) is an innovative AI toolkit that significantly simplifies the complexity of AI/DL frameworks, enabling users to rapidly build production-quality trained models without coding.
Applications:
Specification:
The x16 PCIe slot supports up to x8 PCIe 4.0.
The M.2 Key M slot supports up to x4 PCIe 4.0.
The M.2 Key E slot supports up to x1 PCIe 4.0.
USB Type-C: 2x USB 3.2 Gen2
USB Type-A: 2x USB 3.2 Gen2,2x USB 3.2 Gen1
USB Micro-B: USB 2.0
40-pin header (12C,GPIO, SPI,CAN,I2S,UART, DMIC)
12-pin automation header
10-pin audio panel header
10-pin JTAG header
4-pin fan header
2-pin RTC battery backup connector
DC power jack
Power, Force Recovery, Reset buttons
